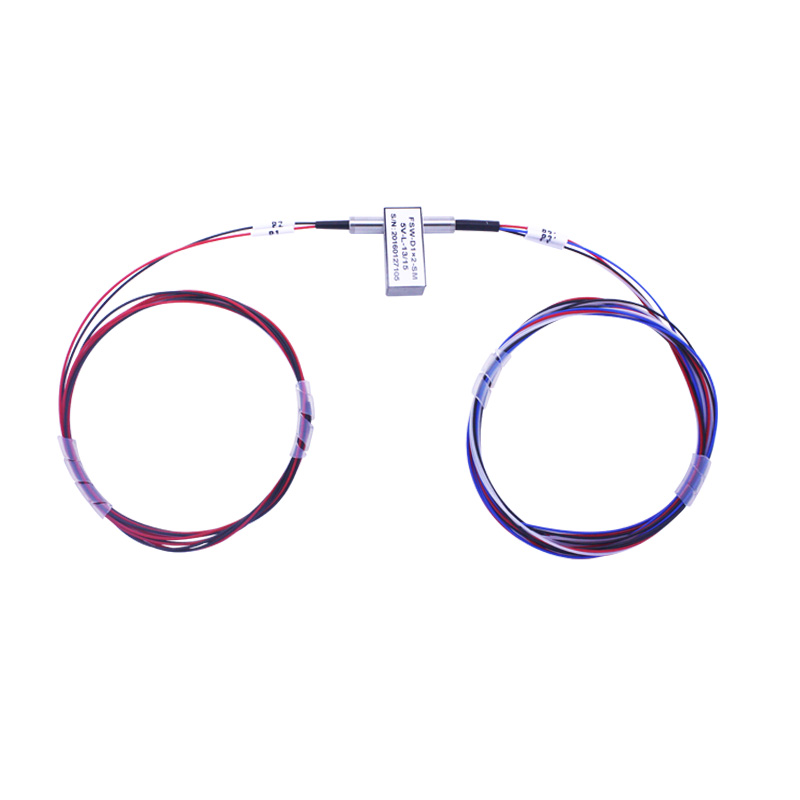

1×2 Mechanical Optical Switch

Features

Unmatched Low Cost

Low insertion Loss

High Channel Isolation

High Stability, High Reliability

Epoxy-free on Optical Path

Latching or Non-latching


Applications

Optical Network

Protection/Restoration

Optical Singnal Routing

Configurable Optical Add/Drop

Transmitter and receiver protection

Network Test System


Performance

Parameters


1×2

Wavelength Range

nm

670~980

1260~1650

OperatingWavelength

nm

670/785/850/980

1310/1490/1550/1625/1650

Insertion Loss

dB

Typ:0.8  Max:1.2

Typ:0.5  Max:0.8

Return Loss

dB

MM≥30   SM≥50

Crosstalk

dB

MM≥35   SM≥55

PDL

dB

≤0.05

WDL

dB

≤0.25

TDL

dB

≤0.25

Repeatability

dB

≤±0.02

Power supply

v

3.0 or 5.0

Lifetime

Time

≥107

Switch Time

ms

≤8

Transmission Power

mW

≤500

OperatingTemperature

-20~+70

Storage Temperature

-40~+85

Weight

g

16

Dimension

mm

(L)27.0×(W)12.6×(H)8.0(±0.2)



































Above specification are for device without connector



Pins


Type

Pin

          Electric Drive

Status sensor

1×2

channel

1

5

6

10

2-3

3-4

7-8

8-9

Latching

P1-P2

--

--

GND

V+

Close

Open

Open

Close

P1-P3

V+

GND

--

--

Open

Close

Close

Open

Non-latching

P1-P2

--

--

--

--

Close

Open

Open

Close

P1-P3

V+

--

--

GND

Open

Close

Close

Open












Optical Route


Status One

Status Two
















Dimension






Electric

Specifications

Voltage

Current

Resistance

5V   latching

4.5~5.5

36~44mA

125Ω

5V   non-latching

4.5~5.5

26~32mA

175Ω

3V   latching

2.7~3.3

54~66mA

50Ω

3V   non-latching

2.7~3.3

39~47mA

70Ω









Ordering Information  (POSW-1231-3LOS-2510NN)


Model

Wavelength

Voltage Type

Control Model

Fiber Type

Fiber Diameter

Fiber Length

Connector

POSW-12=1x2

85= 850nm

13=1310nm

14=1490nm

15= 1550nm

162= 1625nm

165=1650nm

13/15=1310/

1550nm



3=3V

5= 5V

L= Latching

N=Non- Latching

OM5=50/125

OM6=62.5/125

OS= 9/125



25=250um

90=900um

20=2.0mm

30= 3.0mm





05=0.5m

10=1.0m

15=1.5m

SS=Specific



NN=None

FP= FC/PC

FA= FC/APC

SP= SC/PC

SA= SC/APC

LP= LC/PC

LA= LC/APC

SS=Specific
